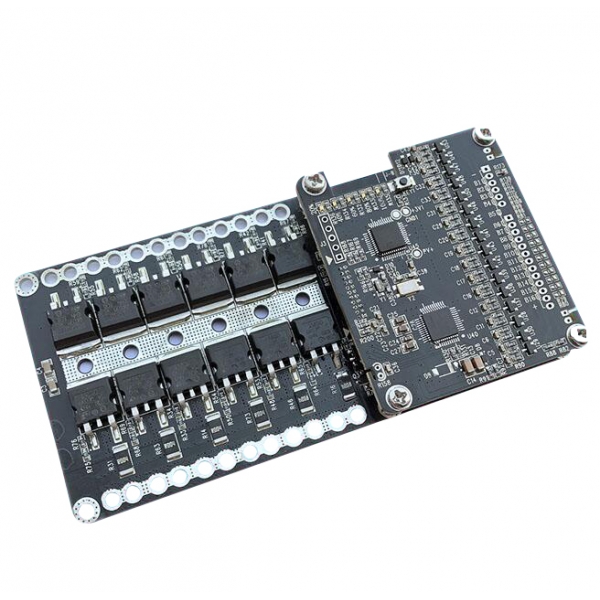

Melasta offers complete integrated solution for the battery include cell selection, BMS selection, integrated software solution and communication protocol integration with the required application. Melasta’s in-house research and development team is focused on designing the BMS according to customer requirements. These are the main features of our designed BMS
1. Support RS485, CAN BUS, URAT, i2c and other communication protocol
2. Up to 100a continuous discharge current
3. Support MOS high temperature protection function
4. Over voltage, over current, over temperature control function.
5. Over-current, under voltage, and low-temperature protection.
6. Self-Heating Technology for Low Temperature.
Battery Management System which is shortly known as BMS is an electronics circuit which is used to control the safe operation of the battery. It protects the battery pack from being over-charged (cell voltages going too high) or over-discharged (cell voltages going too low) thereby extending the life of the battery pack. Melasta offer the designing service for customized BMS. These are the main features of customized BMS design.
Communication Functions
1. Communication Protocol(RS485, CAN BUS, URAT, I2C)2. Communication Protection 3. SOC Indicator 4. Current Detection 5. Abnormal Log 6. Self-Inspection 7. Using Time Record |
Charge Management
1. Charging Over-Voltage Protection2. Charging Over-Current Protection 3. Charging Over-Temperature Alarm/Protection 4. Charging Low-Temperature Alarm/Protection 5. Abnormal Voltage Gap Warning 6. Charging Short Circuit Alarm/Protection 7. Self-Balancing |
Discharge Management
1. Discharging Over-Current Protection2. Discharging Under-Voltage Protection 3. Battery No-Load Protection 4. Discharging Short Circuit Alarm/Protection 5. Discharging Over-Temperature Alarm/Protection 6. Discharge Low-Temperature Alarm/Protection |
Special Functions
1. Self-Heating Technology for Low Temperature2. Ultra-Low Power Consumption 3. Reverse Connection Protection 4.Self-Discharging in Fully Charged Storage |
Serial Number |
Standard Model |
Scheme Type |
Support The Number Of Series |
Support Battery Capacity Range (mAh) |
Continuous Current Range (A) |
MOS Package And Quantity |
Charging Overcurrent (A) |
Balance Current (ma) |
MOS Topology |
Temperature Protection |
Discharge Switch Function |
Size(mm) |
1 |
MB-B1401 |
BP308 |
7~14 |
3000~20000 |
-20~+20 |
3-TO252 |
YES |
- |
Same mouthhalf split mouth |
Optional |
Optional |
63*32*8 |
2 |
MB-B1402 |
BP308 |
7~14 |
3000~20000 |
-20~+20 |
3-TO252 |
YES |
- |
Completely split |
Optional |
Optional |
63*32*8 |
3 |
MB-B1403 |
BP308 |
7~14 |
3000~20000 |
-25~+25 |
3-TO220 |
YES |
Optional, Max50mA |
Same mouthhalf split mouth |
Optional |
Optional |
71*56*12 |
4 |
MB-B1404 |
BP308 |
7~14 |
3000~20000 |
-25~+8 |
13-TO220 |
YES |
Optional, Max50mA |
Completely split |
Optional |
Optional |
63*32*8 |
5 |
MB-P1405 |
BP308 |
7~14 |
3000~20000 |
-25~+8 |
13-TO220 |
YES |
Optional, Max50mA |
Half split Complete split |
Optional |
Optional |
109*35*8 |
6 |
MB-B1406 |
BP308 |
7~14 |
3000~20000 |
-25~+8 |
13-TO252 |
YES |
Optional, Max50mA |
Fully split (charge off discharge tube) |
Optional |
Optional |
63*35*8 |
7 |
MB-B1407 |
BP308 |
7~14 |
3000~50000 |
-50~+50 |
6-TO220 |
YES |
Optional, Max50mA |
Same mouthhalf split mouth |
Optional |
Optional |
90*65*15 |
8 |
MB-B1408 |
BP308 |
7~14 |
3000~20000 |
-25~+8 |
13-TO252 |
YES |
Optional, Max50mA |
Half mouth |
Optional |
Optional |
50*40*8 |
Serial No |
Product number |
Scheme type |
Support section (Cell) |
Support battery capacity range (mAH) |
Application field |
Commu- nication |
Upper software support |
MOS package and quantity |
Continuous current range (A) |
Balance current (mA) |
Temperature protection |
Accurate electricity metering |
Size(mm) |
1 |
MB-GP04S007 |
BQ76920+STM32 |
4 |
5000~120000 |
Energy storage |
RS485 |
Yes |
9-TO263-7 |
-100~+100 |
- |
Yes |
YES |
170*60*15 |
2 |
MB-GP06S003 |
RAJ240080 |
4~6 |
5000~12000 |
Ebike, PowerTools, UPS |
SMBUS |
Yes |
2-TO252 |
-12~+12 |
0~60 |
Yes |
YES |
88*56.5*8 |
3 |
MB-GP07S007 |
930+328 |
6~7 |
3000~10000 |
robot |
UART |
Yes |
12-TO220 |
-20~+2 |
0~60 |
Yes |
YES |
111*69*8 |
4 |
MB-GP10S026 |
940+328 |
10 |
3000~10000 |
Ebike |
UART |
Yes |
2-TO220 |
-20~+20 |
0~60 |
Yes |
YES |
303.5*54*10 |
5 |
MB-GP10S034 |
940+STM32 |
10 |
10000~40000 |
Ebike |
CAN |
Yes |
2-TO220 |
-15~+15 |
0~60 |
Yes |
YES |
100*55*15 |
6 |
MB-UP03S001 |
RAJ240080 |
3S |
3000~100000 |
ups |
UART |
YES |
10-TO220 |
-100~+100 |
YES |
YES |
167*67*15 |
|
7 |
MB-UP43 |
940+STM32F103C8 |
6~16 |
10000~40000 |
Electric motorcycle, AGV |
CAN |
Yes |
6-TO220 |
-45~+45 |
0~60 |
Yes |
YES |
140.5*134.5*12 |
8 |
MB-UP45 |
940+STM32F103C8 |
6~16 |
10000~40000 |
Electric motorcycle, AGV |
485/CAN |
Yes |
6-TO220 |
-45~+45 |
0~60 |
Yes |
YES |
316.5*64*12 |
9 |
MB-UP49 |
940+STM32F103C8 |
6~15 |
10000~40000 |
Electric motorcycle, AGV |
CAN |
Yes |
15-TO220 |
-40~+8 |
0~60 |
Yes |
YES |
100*70*12 |
10 |
MB-UP50 |
940+STM32F103C8 |
6~14 |
10000~40000 |
Electric motorcycle, AGV |
NFC |
Yes |
8-TO220 |
-50~+50 |
0~60 |
Yes |
YES |
160*90*12 |
11 |
MB-UP51 |
940+STM32F103C8 |
6~15 |
10000~40000 |
Electric motorcycle, AGV |
485/CAN |
Yes |
CC-TO220 |
-80~+80 |
0~60 |
Yes |
YES |
140.5*134.5*12 |
12 |
MB-UP53 |
940+STM32F103C8 |
6~15 |
10000~40000 |
Electric motorcycle, AGV |
CAN |
Yes |
10-TO220 |
-150~+150 |
0~60 |
Yes |
YES |
177*90*15 |
13 |
MB-UP54 |
940+STM32F103C8 |
6~15 |
10000~40000 |
Electric motorcycle, AGV |
CAN |
Yes |
4-TO220 |
-32~+32 |
0~60 |
Yes |
YES |
135*128.5*10 |
This standard describes the size, characteristics, technical requirements and matters of PCM for 6~16 series. These parameters are for a customized project.
Temperature: 15~35℃
Relative humidity: 45~75% RH
Atmospheric pressure: 86~106 KPa
Voltage meter request:The accuracy of the measuring instrument is not less than 0.5. The resistance is not less than 10KW/V
Current meter request: The accuracy of the measuring instrument is not less than 0.5
Time meter request: The accuracy of the measuring instrument is not less than 0.1%
Temperature meter request: The accuracy of the measuring instrument is not less than 0.5℃
No. |
Item |
Min. |
Typical Value |
Max |
Unit |
Note |
1 |
Number Of Series |
6 |
~ |
16 |
series |
Software adjustments |
2 |
Charging Current |
— |
150 |
|
A |
Continuous |
3 |
Discharging Current |
— |
150 |
|
A |
Continuous |
4 |
Monomer Overvoltage |
4200 |
4250 |
4300 |
mV |
The first level (adjustable parameters)
|
Reaction Time |
1 |
2 |
3 |
S |
||
Recovery |
4050 |
4100 |
4150 |
mV |
||
Monomer Overvoltage2 |
_ |
4450 |
4600 |
mV |
The second level (adjustable parameters)
|
|
Reaction Time |
|
1000 |
1250 |
mS |
||
Recovery |
Software delete |
|||||
5 |
Monomer Under Voltage |
2750 |
2800 |
2850 |
mV |
The first level (adjustable parameters)
|
Reaction Time |
1 |
2 |
3 |
S |
||
Recovery |
3350 |
3400 |
3450 |
mV |
||
Cell Voltage |
2000 |
2000 |
2100 |
mV |
The second level (adjustable parameters)
|
|
Reaction Time |
100 |
— |
1000 |
mS |
||
Recovery |
Software delete |
|||||
6 |
Short Circuit Protection |
When positive and negative resistance is less than 50mΩ, It is short-circuit |
|
|||
Recovery |
remove load 6-10S |
|||||
7 |
Over Charging Current Protection |
150 |
160 |
170 |
A |
Adjustable parameters |
Reaction Time |
3 |
4 |
— |
S |
||
Recovery |
Automatic recovery after 8S |
|||||
8 |
Over Discharging Current Protection 1 |
150 |
160 |
170 |
A |
The first level (Adjust parameters) |
Reaction Time |
— |
5 |
— |
S |
||
Recovery |
Recovery: Automatic recovery after 4S |
|||||
Over Discharging Current Protection |
180 |
200 |
220 |
A |
(The second level (Adjustable parameters) |
|
Reaction Time |
500 |
—— |
1000 |
mS |
||
Recovery |
software delete |
|||||
9 |
Charging Over-Temperature Protection |
53 |
55 |
80 |
℃ |
Adjustable parameters |
Recovery Temperature |
37 |
40 |
43 |
℃ |
||
10 |
Discharging Over-Temperature Protection |
57 |
60 |
63 |
℃ |
Adjustable parameters |
Recovery Temperature |
37 |
40 |
43 |
℃ |
||
11 |
Battery Balance |
- |
41 |
82mA |
mA |
Adopting differential pressure method |
12 |
Storage Temperature And Humidity Range |
-20℃ to 35℃,(45-85%RH) within one year |
60%~70%。During storage, battery should charge every three weeks, charge capacity is 60%~70% |
|||
-20℃ to 40℃,(45-85%RH) within 6 months |
||||||
Within 3 months:-20℃ to 45℃,(45-85%RH) |
||||||
Within one week:20℃ to 50℃,(45-85%RH) |
||||||
13 |
Quiescently Current Consumption |
—— |
—— |
30 |
mA |
PCM current consumption |
Sleep Current |
|
0.15 |
1 |
mA |
|
|
14 |
Weight |
|
120 |
|
g |
No wires |
15 |
Working Environment Temperature |
-40 |
25 |
85 |
℃ |
Humidity: max: 85%rh |
16 |
Communication Port |
CANBus、RS485 SMbus |
Communication format, as the content of communications
|
