Melasta Solar Inverter
These series of inverters are Melasta solar inverter with built-in MPPT solar charge controller. Users can set battery charging mode, timing DC/AC mode to meet different requirements. This is high-end smart frequency inverter with built-in MPPT solar charge controller
Features:
Hybrid (Mppt + Ac) Charging Current
High Efficiency
Low Power Consumption
Melasta Solar Inverter Features
1. Easy to install and configure a solar system
2. Smart frequency with best programming design, high stability
3. Built-in MPPT solar controller with high charging efficiency
4. Solar or AC first, AC charging current adjusted by buttons on display
5. Unique design toroidal transformer, pure sine wave output, built-in AVR
6. CPU management, intelligent control, modular design, LCD display
8. Low power consumption, high conversion efficiency
9. Strong loading ability, low failure rate, easy maintenance and long service life
10. Smart charger function for 1k VA- 5kVA (automatic recognition of proper
charging current for battery)
11. Charging current function (total current of combination MPPT and AC
charging can be set customized)

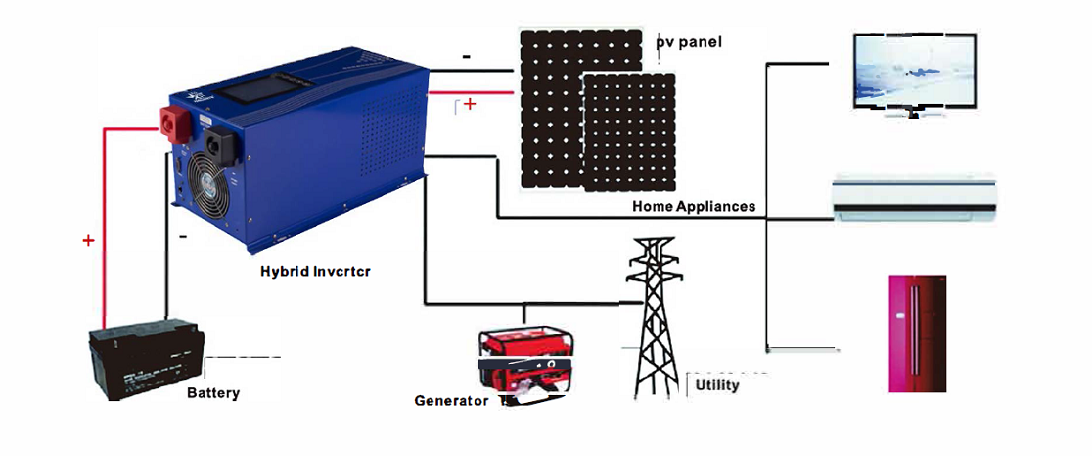

Melasta Solar Inverter Connection Diagram
Product Specifications
These are the technical specification of Melasta solar panel inverter.
1.Parameter
Series |
1 KVA |
1.5KVA |
2KVA |
3 KVA |
4 KVA |
5 KVA |
8 KVA |
10 KVA |
Rate output Power |
800W |
1200W |
1600 W |
2400 W |
3200 W |
4000 W |
6400 W |
8000 W |
Capable of starting Motor |
500 W |
800 W |
1000 W |
1600 W |
2100 W |
2600 W |
4200 W |
5300 W |
Surge Power |
2400 W |
3600 W |
4800 W |
7200 W |
9600 W |
12KW |
19.2KW |
24KW |
Battery |
12V/24V |
24V/48V |
48V/96V/192V |
2. General
Communication port |
RS232/USB |
||
Humidity |
0-90% relative humidity(non-condensing) |
||
Noise |
<45dB |
||
Display Information |
Input voltage, output voltage, output frequency, battery capacity, load condition, status information |
||
Protection |
Overload, Short-circuit, High-voltage input, Low-voltage input, Overheat |
||
Size |
418*208*193.2 |
458*210*216 |
542*294*240 |
3. Charging Mode
Charging Mode (Setting) |
PV Charge |
|||||
PV charge+ Utility Charge |
||||||
MPPT Solar Controller |
Voltage |
12V/24V |
24V/48V |
48V/96V/192V |
||
Current |
20A |
25A |
30A |
50A |
||
Max PV Input Voltage |
72V/144V |
144V/220V/460V |
||||
PV Charge Efficiency |
95%-99% |
|||||
Utility |
AC Charge Current |
Continuous charge current 1-50A(adjustable by button on display) |
||||
4. AC Output
Voltage |
220V ±3% or 230V ±3% or 11 OV ±3% |
Frequency |
50Hz 士0.5 or 60Hz 士0.5 |
Output wave type |
Pure sine wave output, Total Harmonic Distortion THD≤3% |
Overload Protection |
> 120% 1min, > 130% 10s |
Transfer Time |
1-SkVA: <4ms; 6-1 Ok VA: < 1 .5ms (AC to DC I DC to AC) |
Power Consumption |
≤1A |
Conversion Efficiency |
85%-92% |
5. AC Input
AC Input |
145V-275V or 72V-137V 50HZ or 60HZ |
Auto Bypass & AVR |
YES |
AC Output |
220V ±3% or 230V ±3% or 110 V 士3% |
6.Output Mode Setting
Output Mode Setting |
AC first Solar Standby |
Solar First AC Standby |
